Overview

Overview

This fiber optics distribution box TE-ODB-16 is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It terminates up to 2 fiber optic cables, offers spaces for splitters and up to 16 fusions, allocates 16 SC            adapters and working under outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.

Features

l   ABS with PC/ABS material used ensures the body strong and light.

l   Water-proof design for outdoor uses.

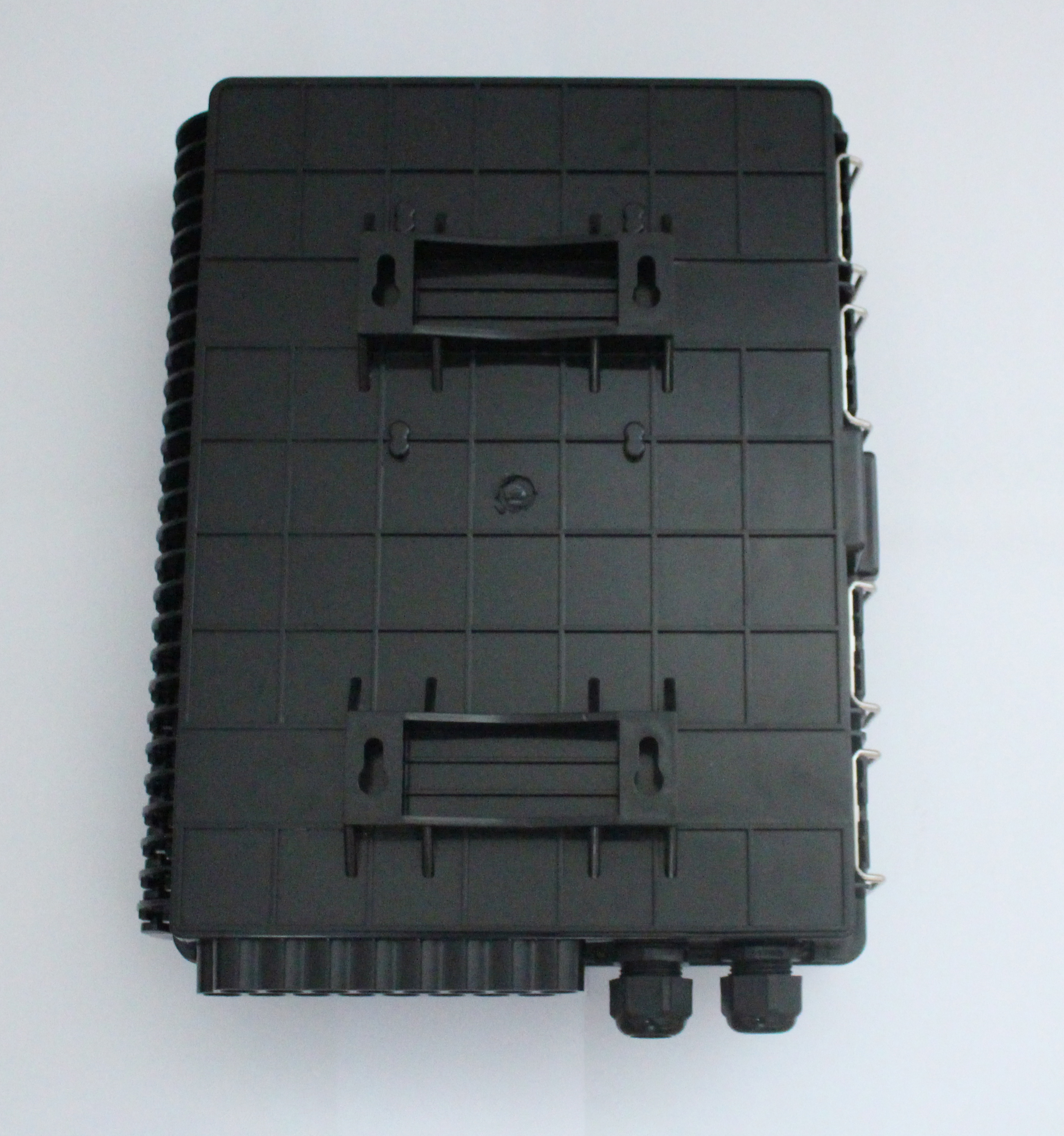

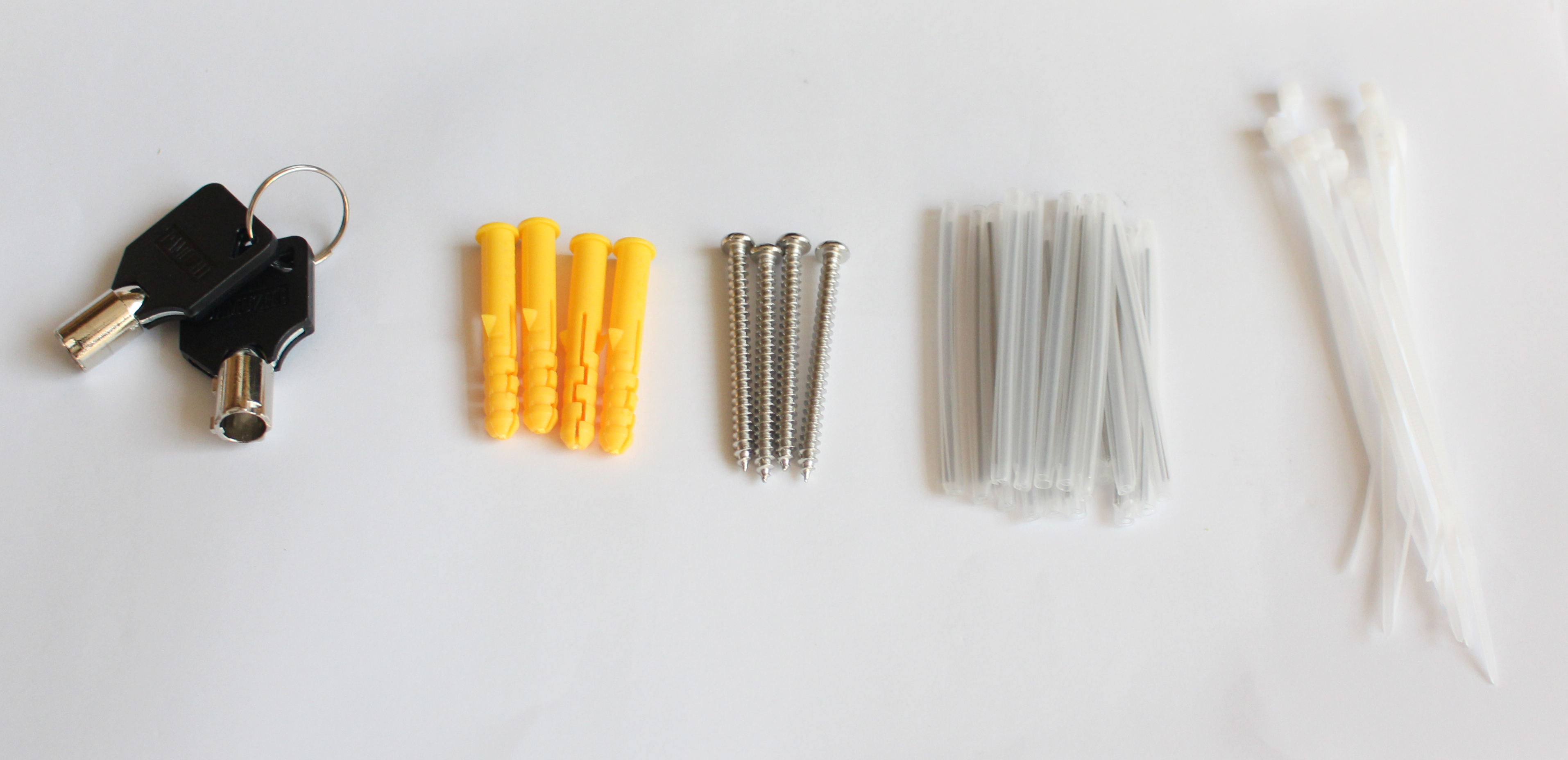

l   Easy installations: Ready for wall mount - installation kits provided.

l    Pole mount (optional,quote upon request) – installation kits need to be ordered.

l   Adapter slots used – No screws and tools needed for install SC adapters and distribution.

l   Ready for splitters: designed space for adding splitters.

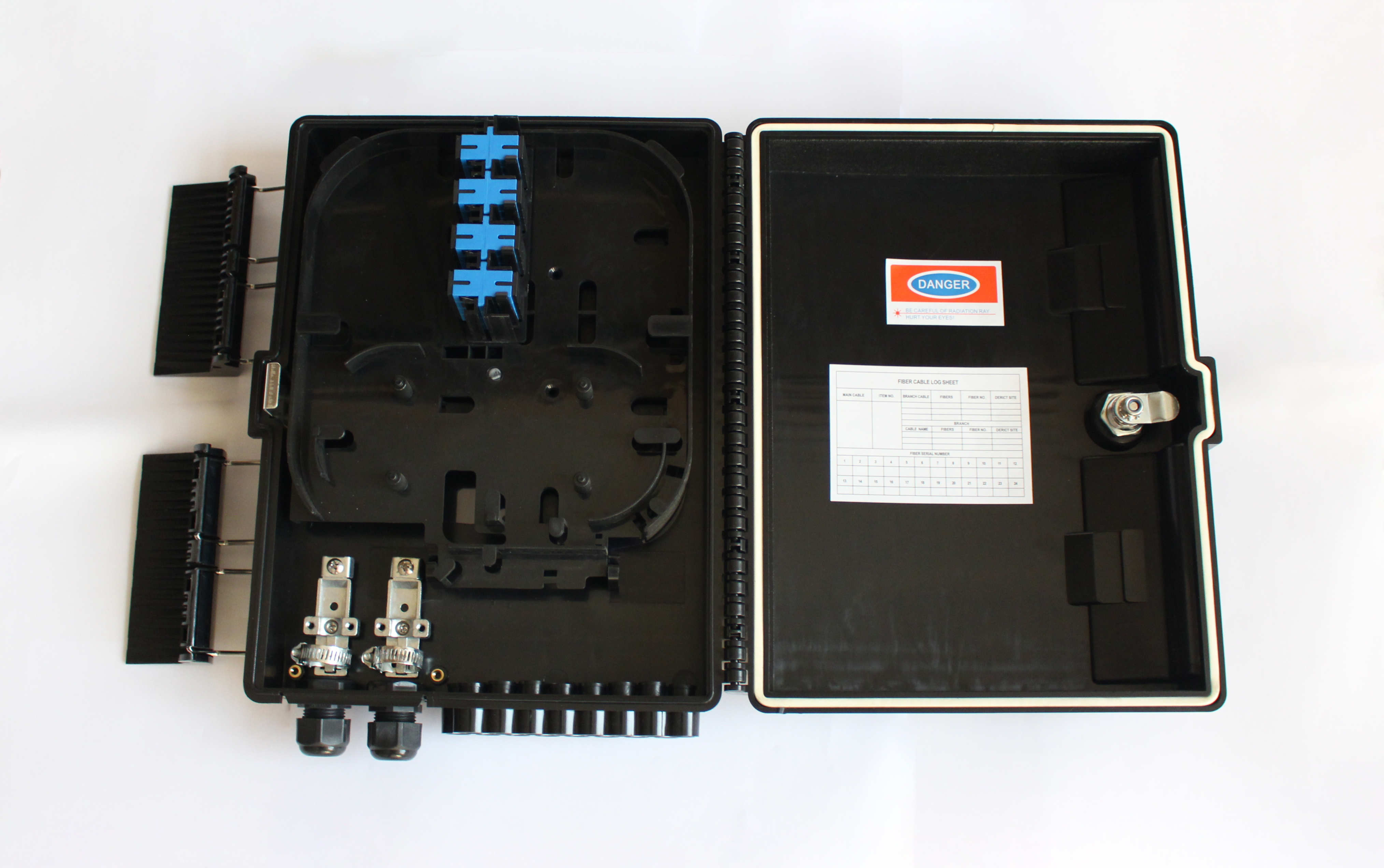

l   Space saving: Double-layer design for easier installation and maintenance:

o Lower layer for splitters and over length fiber storage.

o Upper layer for splicing, cross-connecting and fiber distribution.

l   Cable fixing units provided for fixing the outdoor optical cable.

l   Protection Level: IP66.

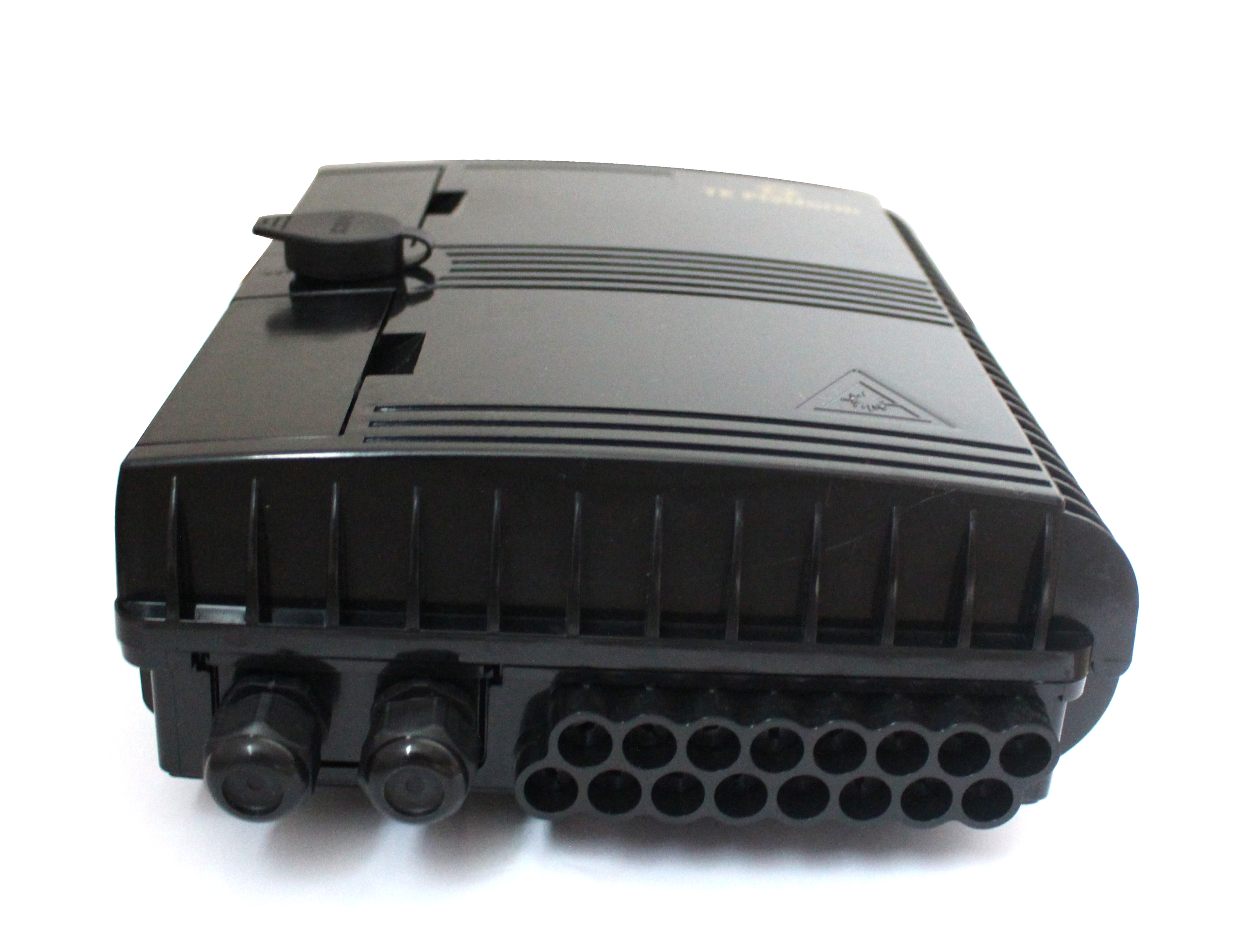

l   Accommodates both cable glands as well as tie-wraps.

l   Lock provided for extra security.

l   Max allowance for entry cables: max diameter 12 mm, up to 2 cables.

l   Max allowance for exit cables: up to 16 simplex cables.

l   Loaded with 16 Adapter SC/UPC simplex

‍
