Overview

This fiber optics distribution box TE-ODB-8 is used as a termination point for the feeder cable to connect with drop cable in FTTx network system. It terminates up to 2 fiber optic cables, offers spaces for splitter s and up to 8 fusions, allocates 8 SC  adapters and working under outdoor environments. It is a perfect cost-effective solution-provider in the FTTx networks.

Features

·       ABS with PC material used ensures the body strong and light.

·       Water-proof design for outdoor uses.

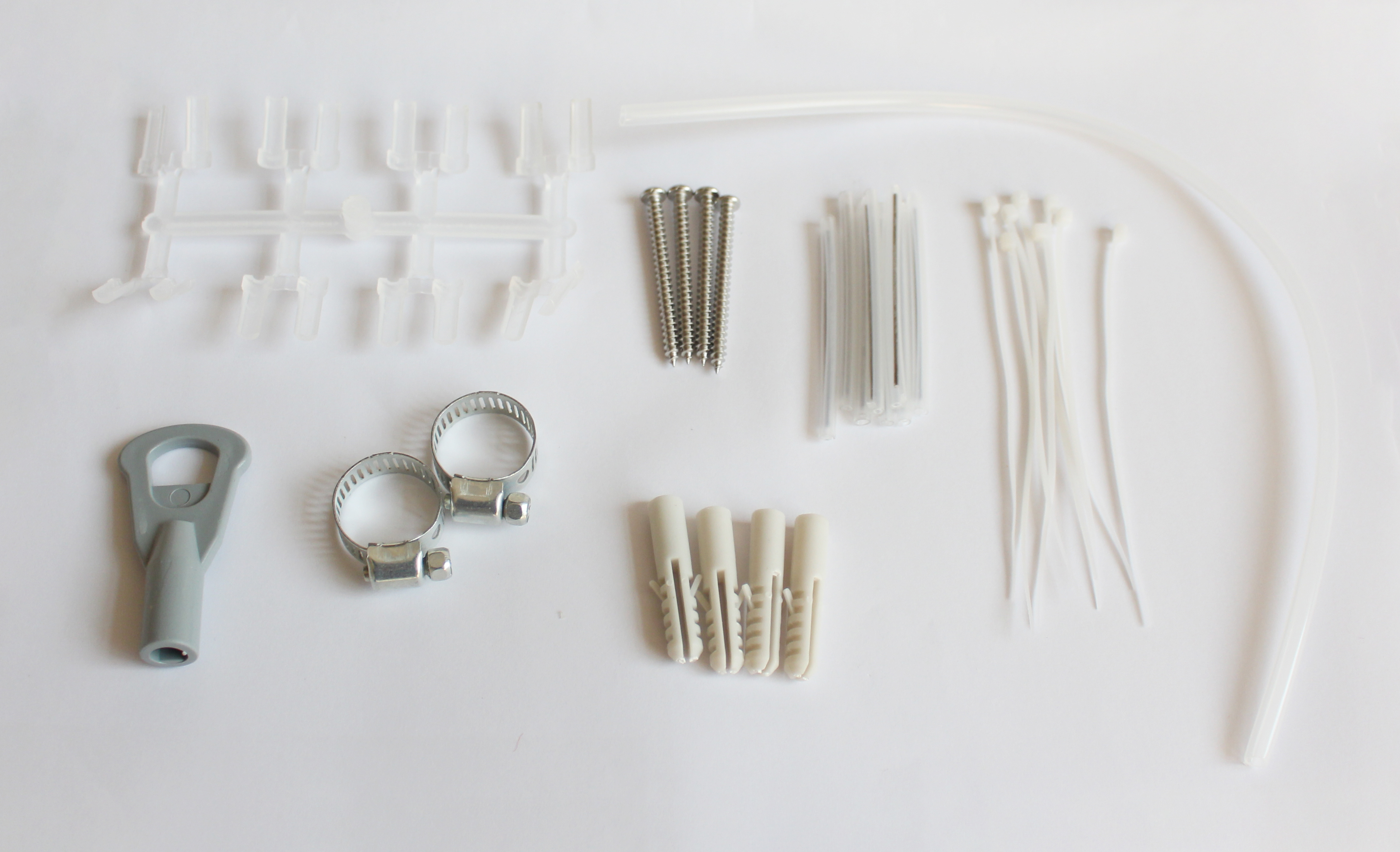

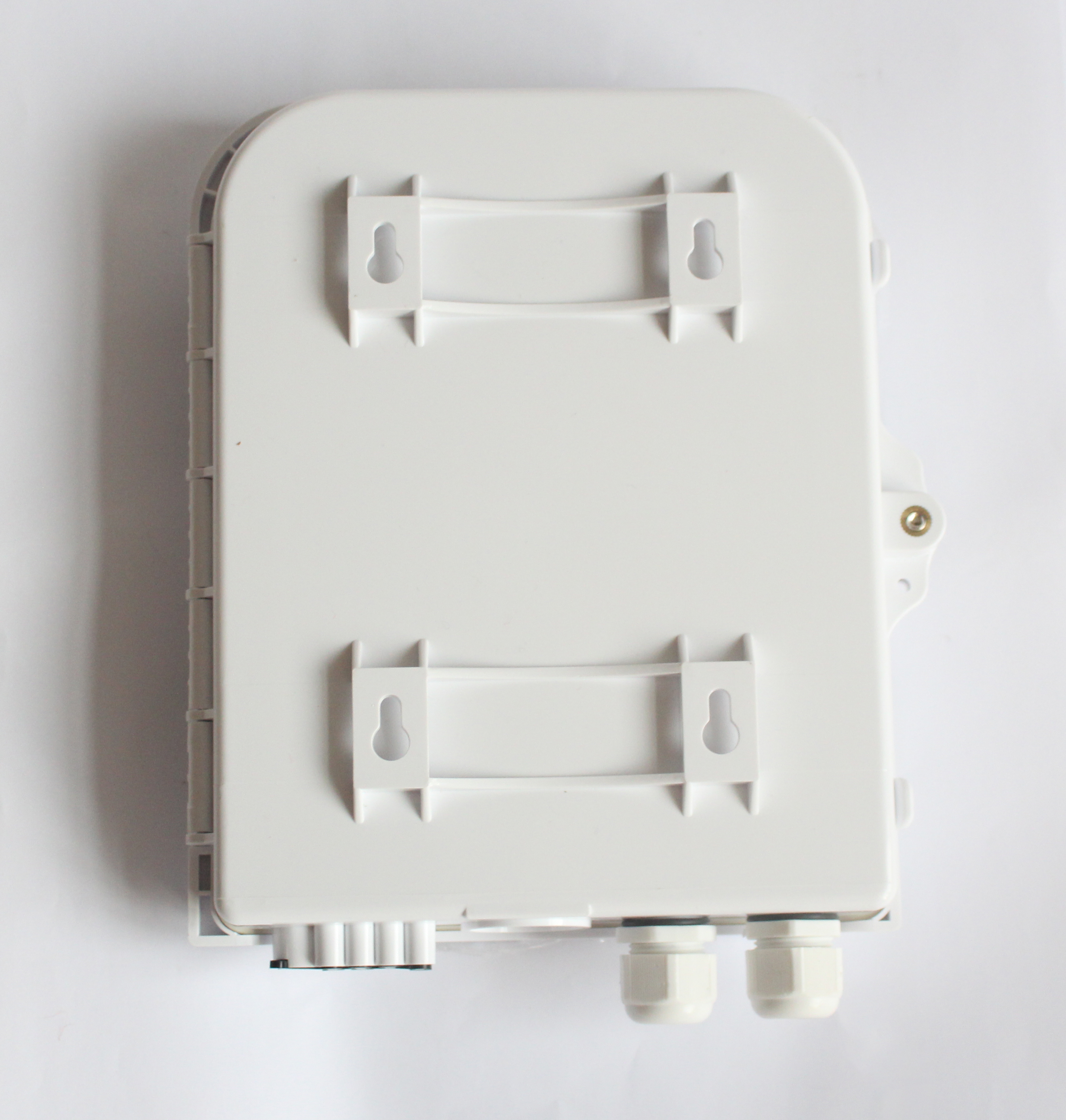

·       Easy installations: Ready for wall mount - installation kits provided.

·       Pole mount (optional) – installation kits need to be ordered.

·       Adapter slots used – No screws and tools needed for install SC adapters and distribution.

·       Ready for splitters : designed space for adding splitters .

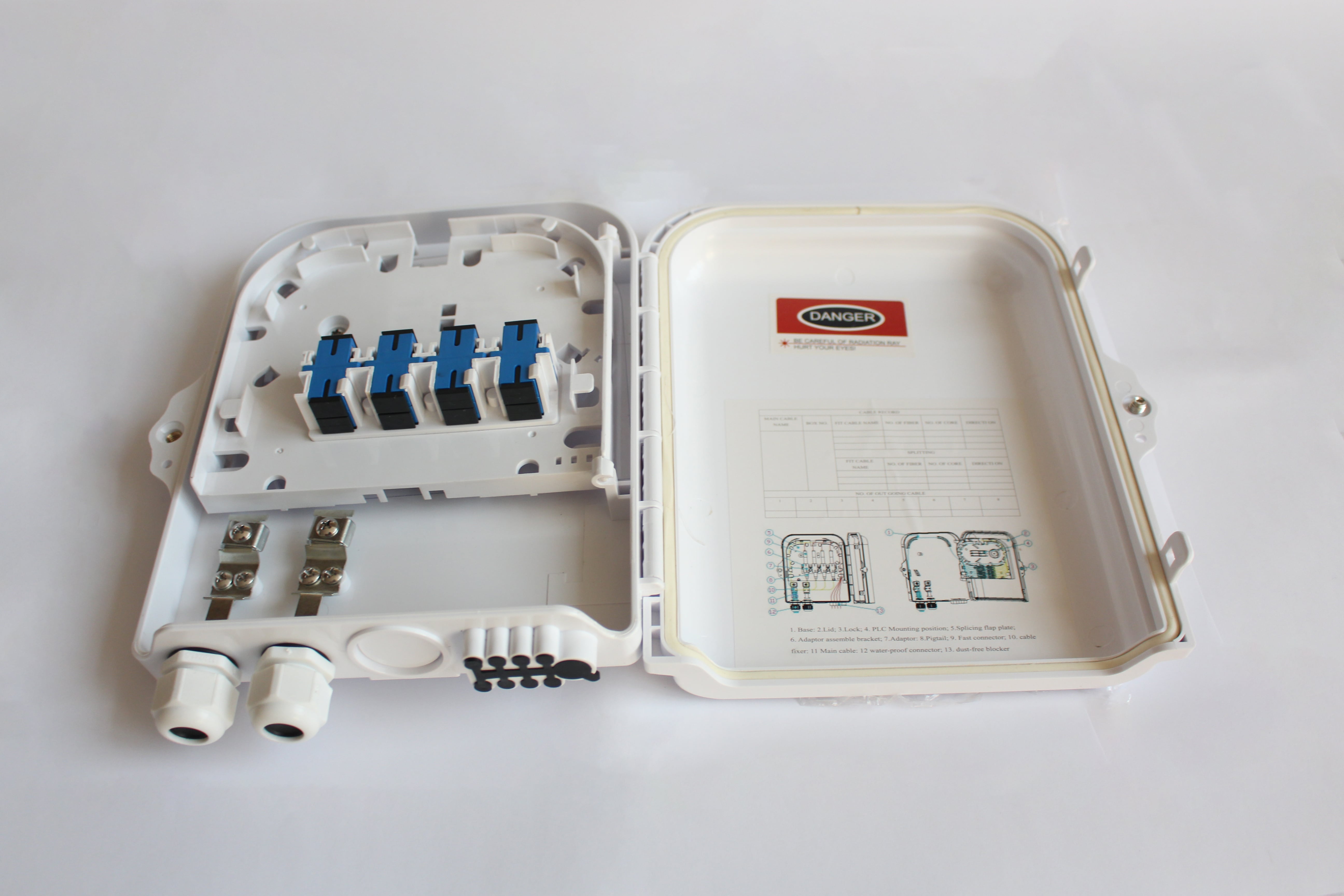

·       Space saving! Double-layer design for easier installation and maintenance :

·       Lower layer for splitters and over length fiber storage.

·       Upper layer for splicing,cross-connecting and fiber distribution.

·       Cable fixing units provided for fixing the outdoor optical cable

·       Protection Level: IP55.

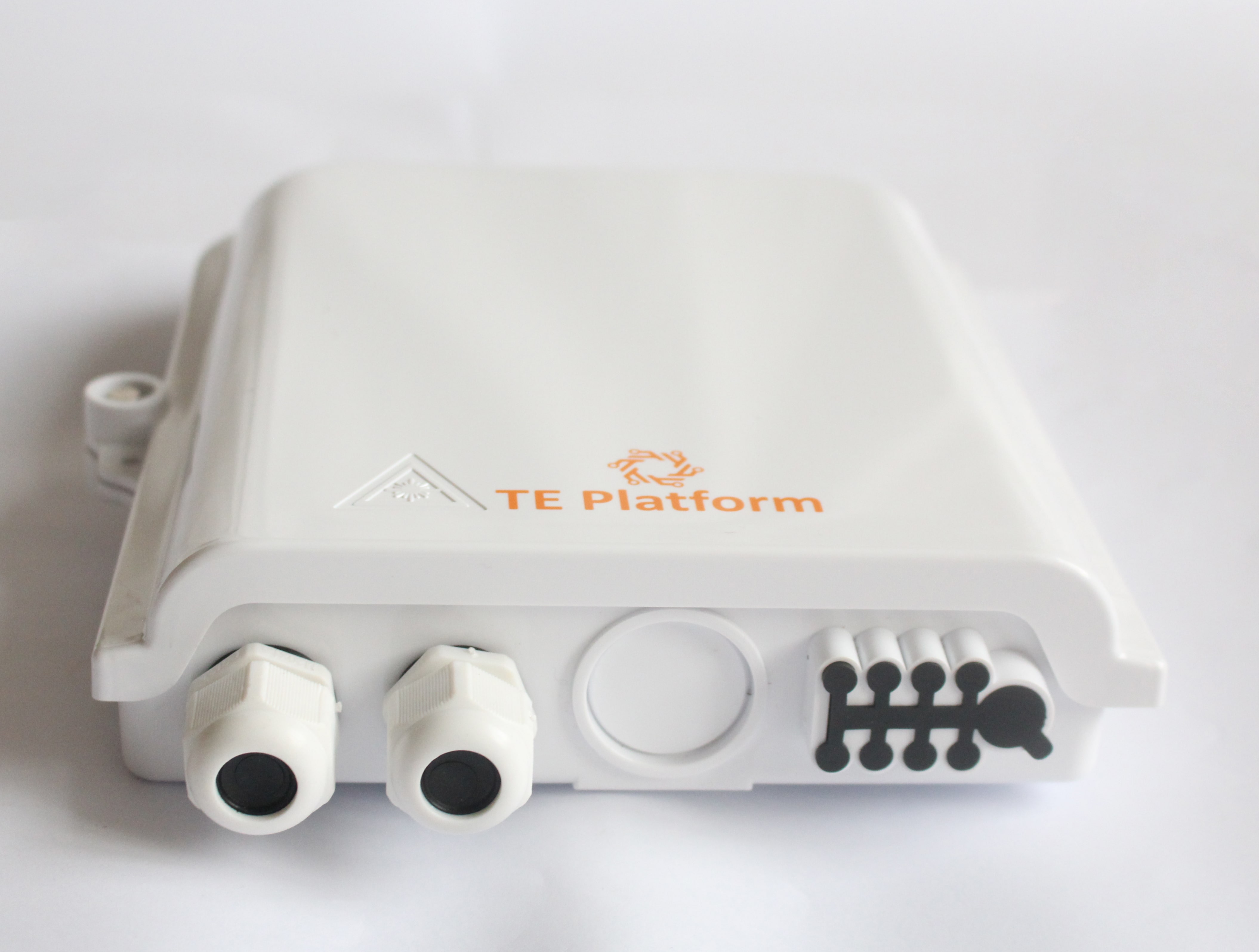

·       Accommodates both cable glands as well as tie-wraps.

·       Max allowance for entry cables: max diameter 12 mm, up to 3 cables.

·       Max allowance for exit cables: up to 8 simplex cables.

·       Loaded With 8 Adapter SC/UPC Simplex.

‍

‍
