Overview

TE-OSC-24H fiber optic splice closures (FOSC) are used to distribute, splice, and store the outdoor optical cables which enter and exit from the ends of the closure. There are two connection ways: direct connection and splitting connection. Applicable to situations such as overhead, man-well of pipeline, embedded situation etc.

Features

l   The protection grade reaches IP 68.

l   Aerial and wall-mounting.

l   Ambient temperature ranges from -40 to 65℃.

l   The closure is of small volume, big capacity and convenient maintenance.

l   The closure casing is made of quality engineering plastics, and of good performance of anti-erosion against acid and alkali salt, anti-aging, as well as smooth appearance and reliable mechanical structure.

l   The mechanical structure is reliable and has the performance of resisting wild environment and intensive climate changes and serious working environment.

Dimensions and Capacity

Outside Dimensions (L*W*H)

460 mm*182 mm*120 mm

Weight (excluding outside box)

2300 g - 2500 g

Number of Inlet / Outlet Ports

2 pieces on each side (total 4 pieces)

Diameter of Fiber Cable

Φ5 mm - Φ20 mm

Capacity of FOSC

Bunchy: 12 cores - 96 cores

Ribbon: up to 144 cores

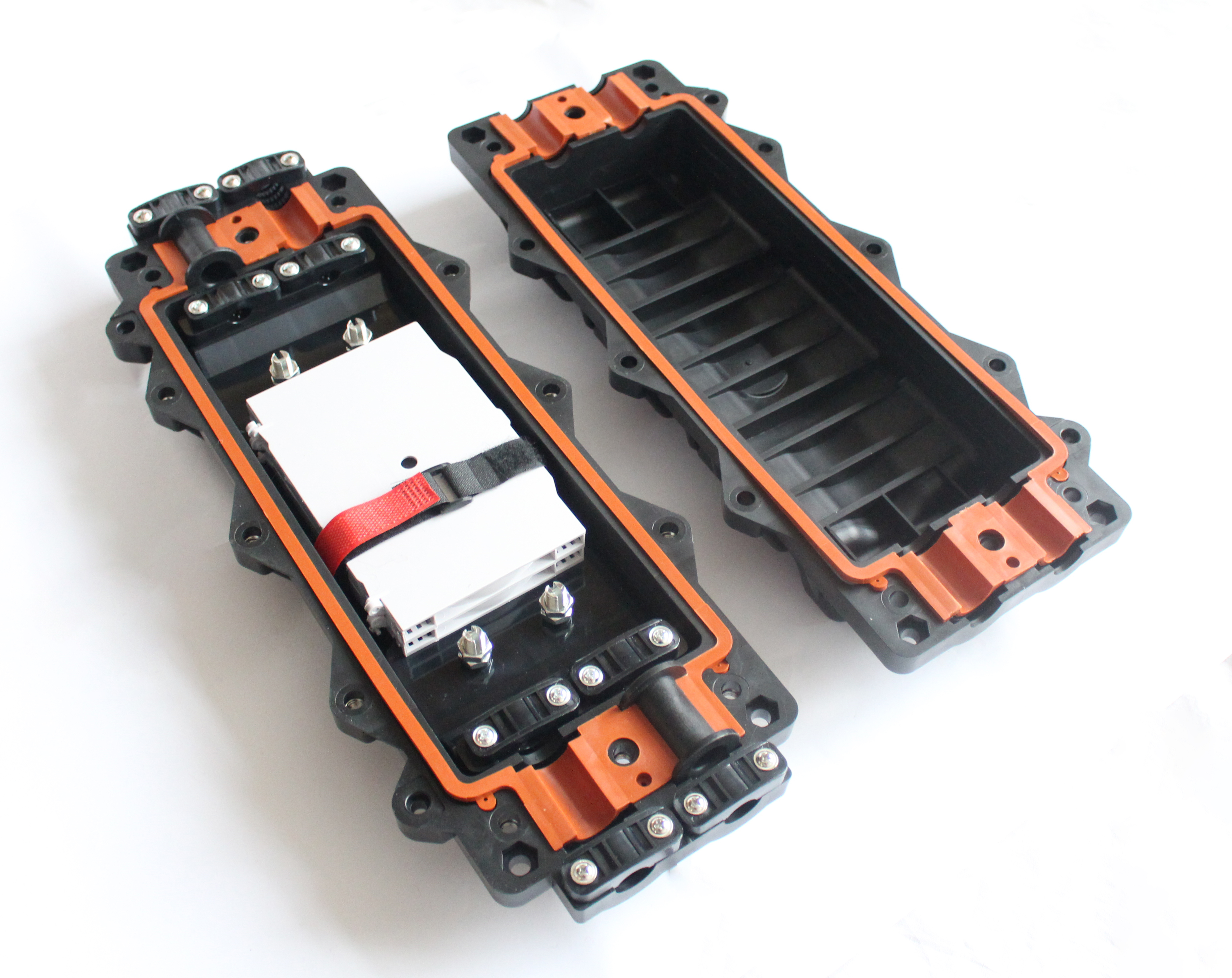

l   The splice trays (FOST) inside the closure are turn-able like booklets, and have adequate curvature radius and space for winding optical fiber to make sure the curvature radius for optical winding 40 mm. Each optical cable and fiber can be operated individually.

‍

‍
